Cuttermasters
                                      GSC
                                               TOOL ROOM SERIES

                   DRILL AND END MILL GRINDERS

GS-1 Helical Tip or Split point
Drill Point Grinder .125 to .5 inch
90  to 140  Degree Tip Angle

Carbide Spot Drills up to 1/2 inch

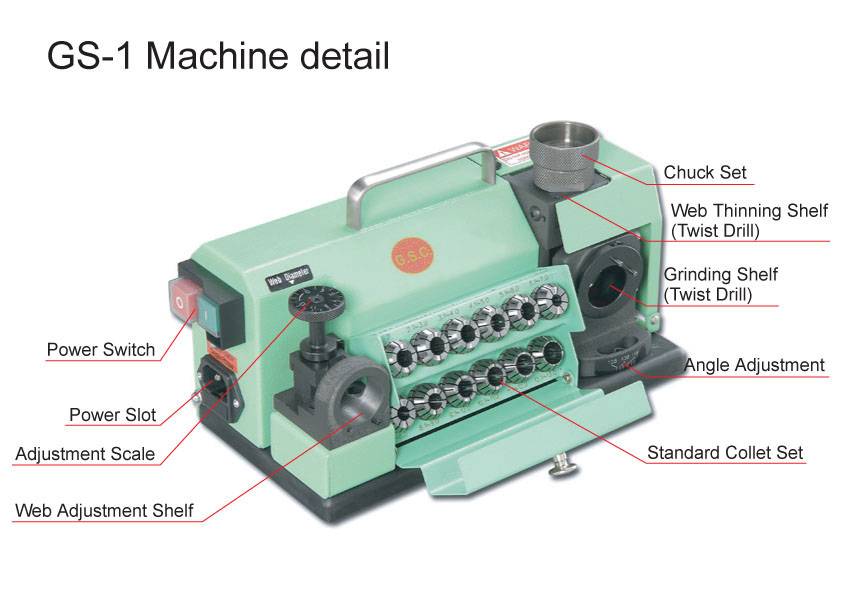

GS 1 Detail View



For 2mm-13mm Twist Drill Re-sharpening , Angle 90°-140°

Precise Grinding Results , Precision Assurance within 0.02mm Easy to Operate , grinding a drill within 10 seconds. Special Design High Accuracy Alloy Steel Collets Accurate Grinding consumption 0.2mm High Efficiency DC motor GE Synthetic Diamod or CBN Grinding Wheel Considerable Design, Invisible Tool Box, Delicate & Friendly Use Portable Design with only weight 7 kgs. Collets are ER20
