Cuttermasters  GSC
                                         TOOL ROOM SERIES

                   DRILL AND END MILL GRINDERS

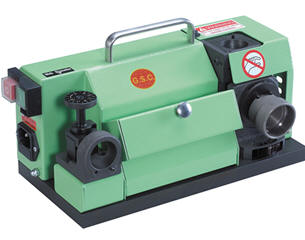

GS-5  Sheet Metal Drill Drill Point Grinder

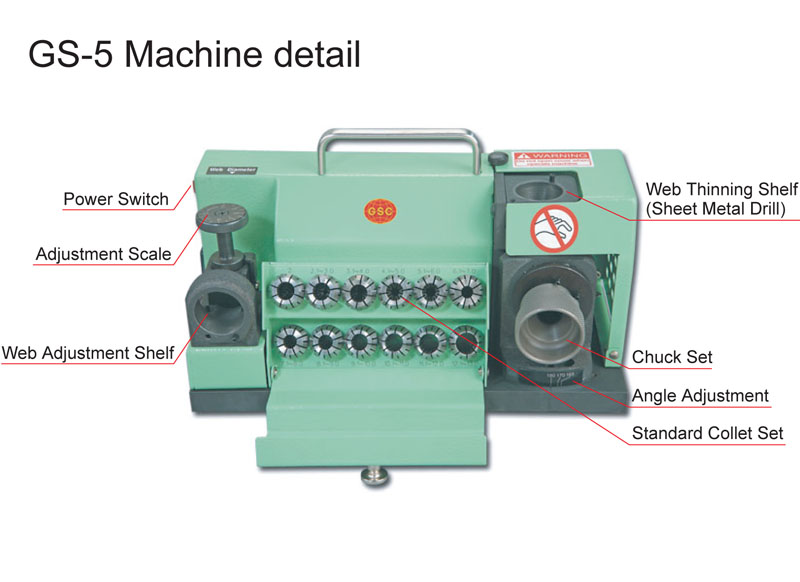

GS5 Detail View



For 3mm-13mm Sheet Metal Drill Re-sharpening , Angle 165°-180°

Precise Grinding Results , Precision Assurance within 0.02mm Easy to Operate , grinding a drill within 10 seconds. Special Design High Accuracy Alloy Steel Collets Accurate Grinding consumption 0.2mm High Efficiency DC motor Stable Quality GE Diamond Dust Grinding Wheel Considerable Design, Invisible Tool Box, Delicate & Friendly Use Portable Design with only weight 8 kgs.

GS-5 Sheet Metal Drills 165°-180°

Special Design For Grinding Sheet Metal Drills

The Durable and High Quality Grinding Wheel.Please choose the appropriate grinding wheel for grindin

A.3.0mm~5.9mm Please Use A Grinding Wheel (CBN)

B.6.0mm~8.9mm Please Use B Grinding Wheel (CBN)

C.9.0mm~13.0mm Please Use C Grinding Wheel (CBN)

Optional:SD grinding wheel is available for sharpening carbide drills.





---
